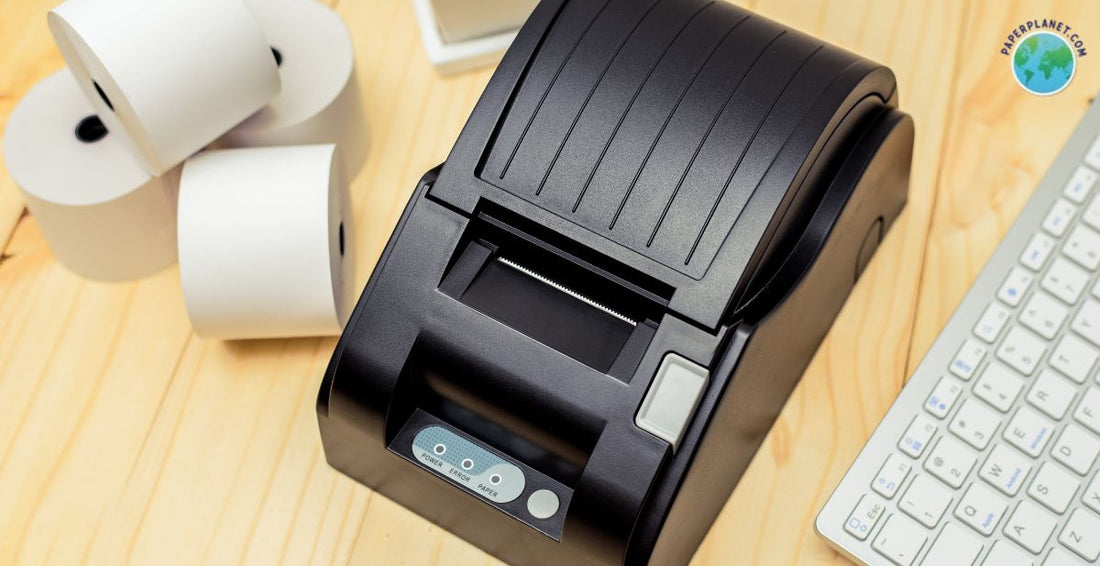

How to Put a Thermal Paper Roll in a Receipt Printer

When your receipt printer stops printing, the issue is often simple: the thermal paper roll has run out. But don’t rush it. Installing a new roll incorrectly can lead to blank receipts, crooked prints, or even paper jams. The process is nearly the same whether you’re using an Epson, Star Micronics, or a mobile Bluetooth printer.

Here’s a straightforward, foolproof guide to replacing thermal paper rolls fast, clean, and without waste.

What You’ll Need

Before starting, check that you have:

• A compatible thermal paper roll (the correct width and diameter)

• A clean printer (wipe the interior if needed)

• Access to the paper compartment

Step-by-Step: How to Install a Thermal Paper Roll

1. Open the Printer Cover

Look for the release lever, button, or tab. It’s usually located on the top or front of the unit. Press or pull to open the cover. Don’t force it if stuck; check for latches or paper jams before continuing.

2. Remove the Used Core

Take out the empty paper roll. Some printers auto-eject it, while others require manual removal. Toss the core and clear out any bits of leftover paper that could clog the feed path.

Check the roller for buildup or dust, and wipe with a lint-free cloth if needed.

3. Identify the Thermal Side

This is a common mistake: loading the paper the wrong way.

To test the thermal side:

• Lightly scratch both sides with your fingernail.

• The side that turns black is the side that faces the heat.

• That side must face down toward the thermal print head.


If you skip this test, you might install it upside-down and wonder why the printer isn’t working.

4. Load the Roll in the Correct Direction

Drop the roll into the compartment with the paper feeding from the bottom, not over the top. The roll should turn smoothly when pulled, with no resistance.

Let a few inches of paper hang outside the compartment. This will help during the next step and make it easier to grab when printing starts.

5. Close the Printer Cover

Gently press down the lid until it clicks into place. If it doesn’t shut:

• The roll might be crooked.

• It could be too large for the compartment.

• The paper might be blocking the sensor.


Reposition and try again. Never slam the cover shut—it can break the locking mechanism.

6. Feed and Test the Paper

Press the Feed button. The printer should pull in the paper and advance it smoothly. This confirms:

• The roll is correctly aligned.

• The thermal side is facing the print head.

• There are no jams or blockages.


If nothing prints or the feed jams, reopen the cover and check the direction.

Common Mistakes to Avoid

1. Installing the Paper Upside-Down

This is the #1 reason receipt printers stop printing. Thermal paper only reacts on one side. If you load it with the coated side facing away from the print head, your receipts will come out blank, no matter how new your printer is.

2. Using the Wrong Type of Paper

Bond paper and thermal paper may look similar, but they function differently. Bond paper requires ink or ribbon; thermal paper doesn’t. Using the wrong one will not only fail to print, but it can also damage your printer head over time.

3. Feeding Paper from the Top

The roll must feed from the bottom, not over the top. Incorrect feeding causes print misalignment, jamming, or blank outputs.

4. Forcing the Cover Closed

Something is likely out of place if the printer cover doesn't close easily. Forcing it can snap the hinge or misalign the sensors, leading to print errors or mechanical damage.

5. Using the Wrong Roll Size

Not all thermal printers take the same roll width or diameter. Too wide or thick Rolls can prevent the cover from closing or cause feeding issues.

6. Skipping Maintenance After a Jam

Sometimes, users yank out jammed paper and reload it without cleaning the feed path. Leftover scraps or label adhesive residue can cause future jams or streaked prints.

How Often Should You Replace the Roll?

Most thermal paper includes a faint red or pink warning stripe near the end of the roll. If you see that, it’s time to prepare a replacement.

Pro tip: Keep extra rolls close to the POS terminal. You don’t want to hunt for a new roll when a line of customers is waiting.

Storage Tips for Thermal Paper Rolls

Thermal paper is sensitive. Poor storage can damage it before you even use it.

• Keep the temperature and humidity at the proper levels for safe storage: Store thermal paper in a room between 20–25°C (68–77°F) with 30%–50% humidity. Heat and moisture speed up coating degradation.
• Use airtight containers: Store rolls in sealed containers to protect from dust and moisture, preserving the thermal coating.
• Check expiration dates: Thermal paper has a shelf life. Continuously rotate stock and use older rolls first.
• Avoid sunlight and UV exposure: Keep paper away from direct sunlight and fluorescent lighting to prevent fading and discoloration.
• Keep it dry: Moisture can ruin thermal paper. Store it in a well-ventilated, low-humidity space (ideally below 30%).

Where to Get Reliable Thermal Paper Rolls

Not all paper rolls are created equal. Cheap or low-grade rolls can jam your printer, produce faded receipts, or leave residue on the thermal head, which can lead to more frequent cleaning and repairs.

It's best to buy from trusted suppliers for consistent print quality and dependable performance. One such source is Paper Planet, which offers high-quality thermal paper rolls compatible with most major POS systems and receipt printers. Whether you need BPA-free options, bulk orders, or specific widths and diameters, Paper Planet has reliable options for any business setup.

Using premium paper protects your hardware and ensures every customer receipt is clean, legible, and professional.

Final Thoughts

Inserting a thermal paper roll into a receipt printer is a simple task, but doing it incorrectly can disrupt your entire workflow. Quick and reliable receipt printing is essential in retail, food service, healthcare, or logistics.

Double-check the direction, confirm the roll type, store your supplies properly, and never assume it’s “just paper”—this tiny detail keeps your business running smoothly.
